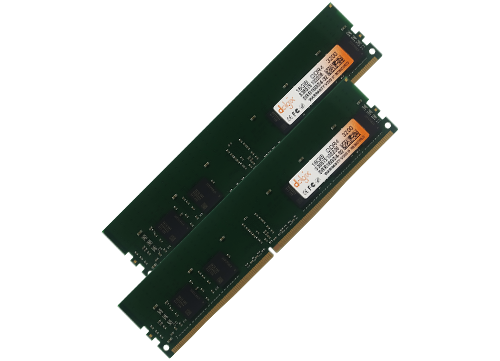

Server Memory

Dolgix Registered DDR4 SDRAM DIMMs (Registered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. These DDR4 Registered DIMMs are intended for use as main memory when installed in systems such as servers and workstations.

Features
  • Power Supply: VDD=1.2V (1.14V to 1.26V)
  • VDDQ = 1.2V (1.14V to 1.26V)
  • VPP = 2.5V (2.375V to 2.75V)
  • VDDSPD=2.25V to 2.75V
  • Supports ECC error detection and correction
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Data transfer rates: PC4-25600
  • Bi-Directional Differential Data Strobe
  • Gold edge contacts
  • Halogen-free
  • Fly-by topology
  • Terminated control, command, and address bus
  • Operating temperature - Commercial (0°C ≤ TOPER ≤ 95°C)
Server Memory RAM
Server Memory Specifications
SDRAM Capacity DIMM MHz Buffer ECC PIN PC-Speed CL Module Density DQ
DDR4 8GB Long 2666 Un-Buffered ECC 288 PC4-21333 19 1024Mx72bit x72
DDR4 8GB Long 3200 Un-Buffered ECC 288 PC4-25600 22 1024Mx72bit x72
DDR4 16GB Long 2666 Un-Buffered ECC 288 PC4-21333 19 2048Mx72bit x72
DDR4 16GB Long 3200 Un-Buffered ECC 288 PC4-25600 22 2048Mx72bit x72
DDR4 32GB Long 2666 Un-Buffered ECC 288 PC4-21333 19 4096Mx72bit x72
DDR4 32GB Long 3200 Un-Buffered ECC 288 PC4-25600 22 4096Mx72bit x72
