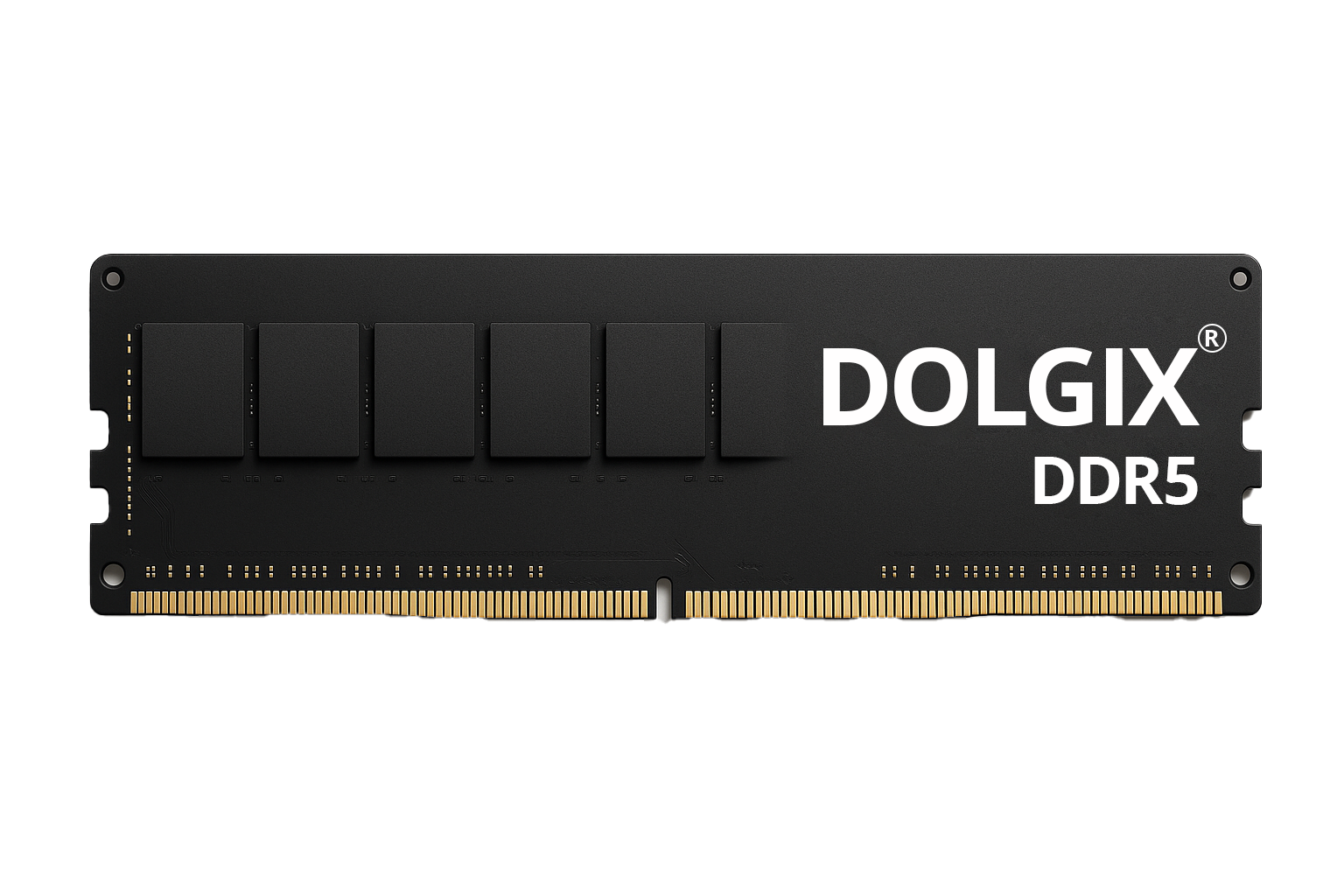

DDR5 RAM Modules

Dolgix Un-buffered client DDR5 SDRAM DIMMs are high-speed, low-power memory modules utilizing advanced DDR5 SDRAM devices. Designed for desktops, these modules deliver enhanced performance and energy efficiency.

Key Features:
  • DRAM VDD/VDDQ = 1.1V (–33mV / +66mV)
  • DRAM VPP = 2.5V (–125mV / +250mV)
  • 32 internal banks, 8 groups of 4 banks each
  • Single / Dual rank
  • 288-pin DDR5 un-buffered UDIMM
  • Transfer Rates: PC5-38400, PC5-41600, PC5-44800
  • Gold edge contacts, halogen-free
  • Operating temp: Commercial (0°C ≤ TOPER ≤ 95°C)
Buy DDR5 RAM - 16GB 6400MT/s | Micron High-Speed Memory
DDR5 RAM Module Specifications
SDRAM Capacity DIMM MHz Buffer ECC PIN PC-Speed CL Module Density DQ
DDR5 8GB Long 4800 Un-Buffered Non-ECC 288 PC5-38400 40 1024Mx64bit x64
DDR5 8GB Long 5200 Un-Buffered Non-ECC 288 PC5-41600 42 1024Mx64bit x64
DDR5 8GB Long 5600 Un-Buffered Non-ECC 288 PC5-44800 46 1024Mx64bit x64
DDR5 16GB Long 4800 Un-Buffered Non-ECC 288 PC5-38400 40 2048Mx64bit x64
DDR5 16GB Long 5200 Un-Buffered Non-ECC 288 PC5-41600 42 2048Mx64bit x64
DDR5 16GB Long 5600 Un-Buffered Non-ECC 288 PC5-44800 46 2048Mx64bit x64
DDR5 32GB Long 4800 Un-Buffered Non-ECC 288 PC5-38400 40 4096Mx64bit x64
DDR5 32GB Long 5200 Un-Buffered Non-ECC 288 PC5-41600 42 4096Mx64bit x64
DDR5 32GB Long 5600 Un-Buffered Non-ECC 288 PC5-44800 46 4096Mx64bit x64
