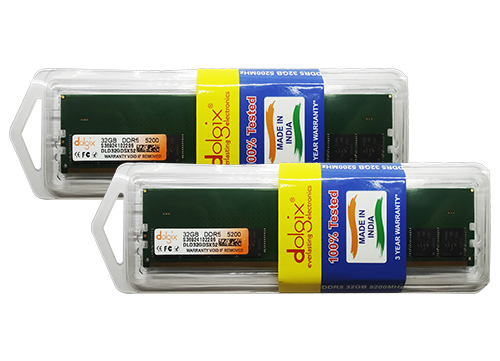

Dolgix Un-buffered client DDR5 SDRAM DIMMs (Un-buffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR5 SDRAM devices. These Un-buffered client DDR5 DIMMs are intended for use as main memory when installed in systems such as Desktop PCs.

Features

  • DRAM VDD/VDDQ = 1.1V (-33mV / +66mV)
  • DRAM VPP = 2.5V (–125mV / +250mV)
  • 32 internal banks, 8 groups of 4 banks each
  • Single / Dual rank
  • 288-pin, DDR5 un-buffered dual in-line memory module (DDR5 UDIMM)
  • Fast data transfer rate: PC5-38400, PC5-41600, PC5-44800
  • Gold edge contacts
  • Halogen-free
  • Operating temperature - Commercial (0°C ≤ TOPER ≤ 95°C)

SDRAM Capacity DIMM MHz Buffer ECC PIN PC-Speed CL Module Density DQ
DDR5 8GB Long 4800 Un-Buffered Non-ECC 288 PC5-38400 40 1024Mx64bit x64
DDR5 8GB Long 5200 Un-Buffered Non-ECC 288 PC5-41600 42 1024Mx64bit x64
DDR5 8GB Long 5600 Un-Buffered Non-ECC 288 PC5-44800 46 1024Mx64bit x64
DDR5 16GB Long 4800 Un-Buffered Non-ECC 288 PC5-38400 40 2048Mx64bit x64
DDR5 16GB Long 5200 Un-Buffered Non-ECC 288 PC5-41600 42 2048Mx64bit x64
DDR5 16GB Long 5600 Un-Buffered Non-ECC 288 PC5-44800 46 2048Mx64bit x64
DDR5 32GB Long 4800 Un-Buffered Non-ECC 288 PC5-38400 40 4096Mx64bit x64
DDR5 32GB Long 5200 Un-Buffered Non-ECC 288 PC5-41600 42 4096Mx64bit x64
DDR5 32GB Long 5600 Un-Buffered Non-ECC 288 PC5-44800 46 4096Mx64bit x64
